xEnergy Main low-voltage switchboard system
A modular, design-verified platform for power distribution and motor control, with fixed, removable and withdrawable configurations for commercial and industrial facilities.
7,100 A
Main busbar rating, up to
IP55
Protection class, up to
105 kA
Short-circuit rating, 1 s
01 — Eaton Low Voltage
Featured platform

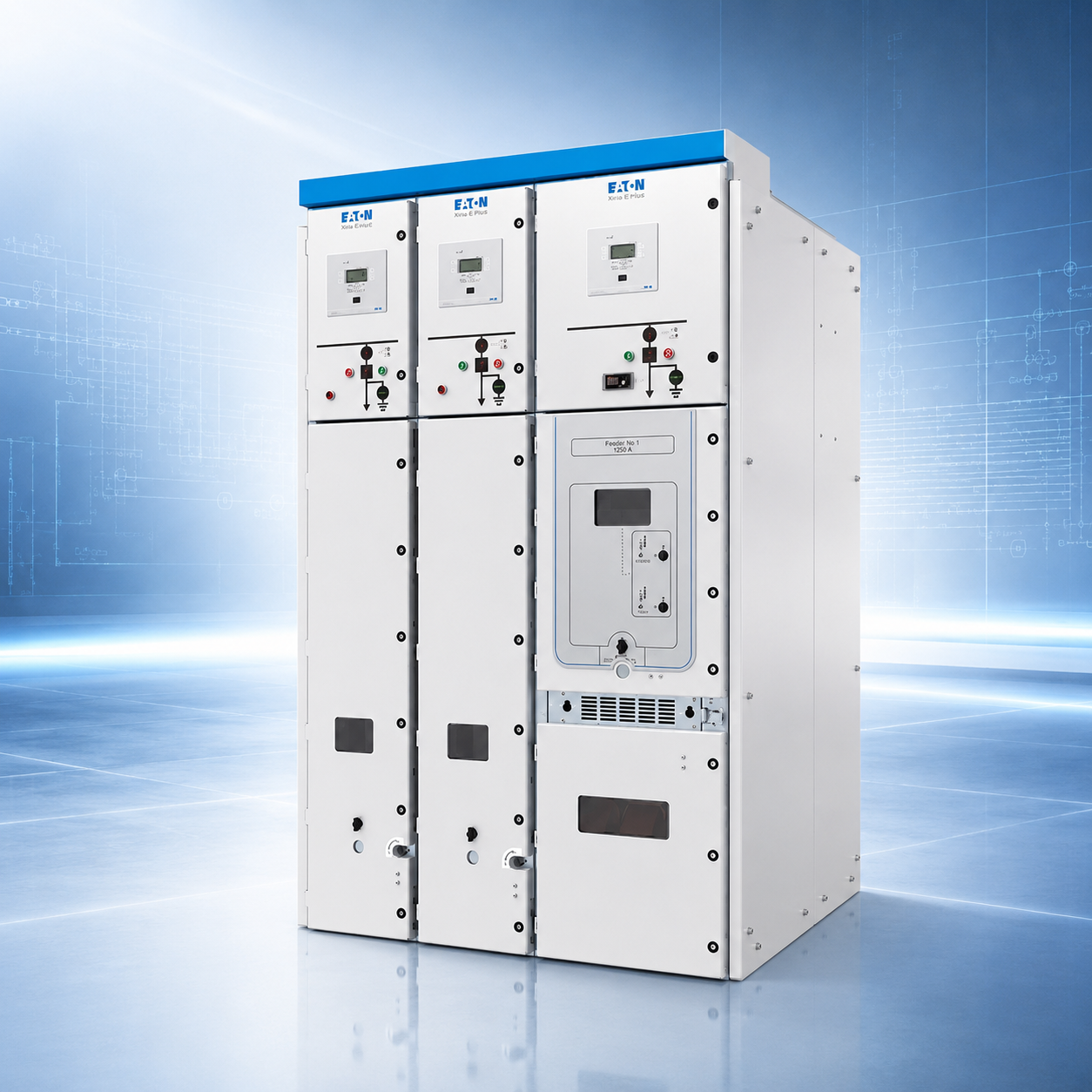

Power Xpert UX primary switchgear
A withdrawable IEC medium-voltage switchgear platform for power distribution and motor-control applications, available in single- and double-busbar configurations with a compact, safety-focused architecture.
24 kV
Rated voltage, up to
4,000 A
Rated current, up to
50 kA – 3 s
Rated short-circuit level, up to
02 — Eaton Medium Voltage
Featured platform
See developing thermal faults before they become outages
Exertherm uses permanently installed sensors to monitor critical electrical connections and joints continuously. Real-time condition data and alerts help maintenance teams move from periodic inspection toward predictive, condition-based maintenance.
Bus Duct
Continuous monitoring of critical joints, tap-off points and end connections.
LV Switchgear
Monitoring at incomers, bus couplers, feeders, cable terminations and shipping splits.
MV Switchgear
Early warning at critical medium-voltage joints and inaccessible connection points.
Motor-Control Centres
Drawer and bucket monitoring for incoming and outgoing power terminations.
Dry Transformers
Temperature monitoring at tap-change connections, coil terminations and LV joints.
LV Transformers
Monitoring of coil ends, input and output terminations and tap connections.
03 — Eaton Exertherm
Continuous Thermal Monitoring
Detect Heat Before It Becomes Failure
Continuous thermal monitoring for critical bus duct joints—helping identify developing hotspots early, reduce unplanned outages and support predictive maintenance.
Bus duct joints are critical connection points where vibration, thermal expansion, ageing and connection deterioration can create abnormal heat. Eaton Exertherm provides continuous temperature monitoring at these joints, helping maintenance teams identify developing hotspots before they lead to equipment damage or unplanned power loss. The permanently installed monitoring system provides continuous visibility rather than relying only on periodic thermal inspections, making it suitable for both new and existing bus duct installations.
How It Works
Thermal sensors are installed at selected bus duct joints and connected to the Exertherm monitoring system. Temperature data is continuously analysed to identify abnormal conditions and changes between monitored connection points. When a developing hotspot is detected, the system provides an early-warning alarm and identifies the affected joint, allowing maintenance teams to investigate and take corrective action before the condition becomes critical.
EXERTHERM BUS DUCT MONITORING
Exertherm temperature and alarm data can be integrated with wider facility-monitoring systems through Modbus RS485 communication.
Exertherm Bus Duct Monitoring is suited to facilities where electrical continuity and system reliability are essential, including:
From equipment selection to a commissioned system
Mactek supports Eaton and Exertherm applications through the full project lifecycle, combining electrical engineering, product coordination, integration and regional delivery.
Brochures, catalogues and application guides
Access official Eaton brochures, product catalogues, application guides and technical datasheets for the solutions presented on this page.
Low-voltage switchgear
Eaton Brochure - xEnergy Main 2 IZMX Stand
xEnergy Main side by side; 179551 (PDF 378 KB , 31/05/2021)
Eaton connected for xEnergy Main brochure
Eaton connected for xEnergy Main brochure (PDF 2 MB , 31/05/2021)
xEnergy IEC low Voltage Family
Brochure BR019033EN (PDF 28 MB , 25/12/2025)
xEnergy Main Distribution & MCC
xEnergy Main brochure; (PDF 8 MB , 31/05/2021)
Eaton xEnergy Main Catalogue
Design-verified Switchgear System (PDF 88 MB , 05/04/2023)
Medium-voltage switchgear
Eaton Power Xpert UX Brochure
Eaton Power Xpert UX Brochure (PDF 5 MB , 11/05/2021)
Eaton W-SLC Brochure
Eaton W-SLC vacuum contactor (PDF 1 MB , 11/05/2021)
Eaton W-VACi Brochure 12/17.5 kV
Eaton W-VACi vacuum circuit breaker up to 17.5 kV (PDF 8 MB , 11/05/2021)
Power Xpert UX 24 leaflet - double busbar configuration
(PDF 641 KB , 11/05/2021)
W-VACi 24kV Product Guide 2018.eps
Eaton W-VACi vacuum circuit breaker 24 kV (PDF 2 MB , 23/12/2022)
Eaton 7.2 kV – 24 kV Power Xpert UX Alternating-current Metal-enclosed Switchgear
Eaton 12kV Power Xpert UX Case studies (PDF 112 KB , 11/05/2021)
Eaton Exertherm Continuous Thermal Monitoring solutions
Exertherm Thermal Xpert 25 Continuous Thermal Monitoring Brochure BR1471EN
This is a brochure for the Exertherm Thermal Xpert 25 providing continuous thermal monitoring with real time hotspot detection remote access and early fault warning. (PDF 1 MB , 05/19/2026)
Exertherm Thermal Xpert 25 thermal monitoring datasheet DS1471EN
This is a datasheet for the Exertherm Thermal Xpert 25 providing continuous thermal monitoring for electrical switchgear and power distribution systems. (PDF 770 KB , 05/19/2026)
Engineering support beyond product supply
Product-led engineering
Solutions are built around the application, system duty and operating environment—not around a generic equipment list.
Design to commissioning
Support spans equipment selection, integration, technical coordination, testing and handover.
Connected maintenance
Exertherm monitoring can be integrated into wider maintenance, BMS, SCADA and IIoT strategies.
Regional delivery
Dubai-based coordination with support for projects across the Gulf, Middle East and selected African markets.
Planning an Eaton or Exertherm application?
Share your single-line diagram, load schedule, system requirements or project brief. Mactek can help define the appropriate product platform, resource package and engineering scope.
